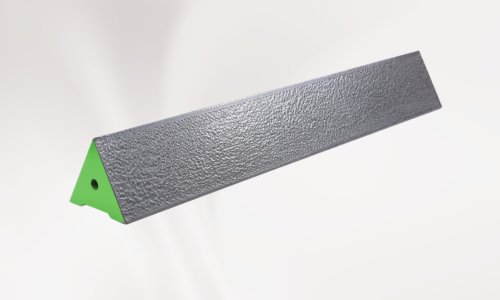

Prismatic Straight Triangular Edges

Prismatic straight triangular edges are precision inspection tools used for checking straightness, angular accuracy, and alignment of machine components and surfaces. At Luthra Precision Instruments Pvt. Ltd., we manufacture prismatic straight edges in triangular form, designed to provide accurate reference edges at multiple angles (30°, 45°, and 60°) for industrial inspection applications. These tools are widely used in tool rooms, machine setup, and precision inspection environments, where multi-angle verification is required.

Product Specifications

Parameter	Details
Usage/Application	Industrial
Brand	Luthra
Length	500 mm to 2000 mm
Material	Cast Iron
Uses	Industrial

Key Features

Multi-angle working surfaces (30°, 45°, 60°)
Accurate flatness for precision inspection
Rigid cast iron construction
Suitable for alignment and angular verification
Durable design for industrial environments
Consistent inspection performance

Applications

Checking straightness of machine surfaces
Angular inspection at 30°, 45°, and 60°
Alignment verification in machine setups
Inspection in tool rooms and workshops

Dimensional & Accuracy Specifications

Length (mm)	Width of Working Surfaces (mm)	Angle (30°)	Angle (45°)	Angle (60°)	Flatness Tolerance (µm)
500	70	70	70	60	4
750	90	90	90	80	6
1000	110	110	110	100	8
1250	130	130	130	110	13
1500	130	130	130	110	13
2000	130	130	130	110	16

Why Choose Prismatic Straight Triangular Edges

These straight edges are preferred when multiple angular references are required in a single tool, precision alignment and angular verification are critical, inspection needs flexibility across different angles, and stable and rigid tools are required for accurate measurements. They are widely used in engineering workshops, machining units, and inspection departments.

Industries We Serve

Automotive and auto component manufacturing
Engineering and fabrication units
Tool rooms and CNC machining facilities
Quality inspection departments

Get a Quote

Contact us today for pricing, specifications, and bulk requirements for Prismatic Straight Triangular Edges. Our team will assist you in selecting the right size and configuration based on your inspection needs.
