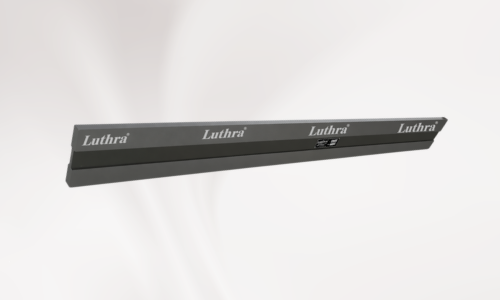

Engineers Steel Straight Edges

Engineers steel straight edges are precision inspection tools used to check straightness, flatness, and alignment of machine surfaces and components. At Luthra Precision Instruments Pvt. Ltd., we manufacture rectangular section steel straight edges designed for accurate inspection and reliable alignment in industrial environments. These tools are widely used in quality control, machine setup, and maintenance applications, ensuring consistent inspection results.

Product Specifications

Parameter	Details
Section Type	Rectangular
Length	100 mm to 6000 mm
Accuracy Class	Grade 1
Material	Steel
Surface Finish	Scraped
Handle	Without Handle
Brand	Luthra

Key Features

Accurate straightness for precision inspection
Rectangular section for stability
Scraped surface finish for reliable contact
Suitable for alignment and flatness checking
Durable steel construction
Consistent performance over long-term use

Applications

Checking straightness of machine beds
Alignment inspection of machine components
Inspection of guideways and surfaces
Maintenance and assembly verification

Straightness & Parallelism Specifications

Dimensions (L x B x H) mm	Straightness (µm)	Parallelism (µm)
300 x 35 x 8	12	24
450 x 35 x 8	12	24
600 x 50 x 8	15	30
1000 x 50 x 8	21	42
1200 x 55 x 10	25	50
1500 x 65 x 12	29	58
2000 x 65 x 12	37	74
2500 x 65 x 12	46	92
3000 x 85 x 18	54	108
4000 x 100 x 20	71	142
5000 x 100 x 20	87	174
6000 x 120 x 20	100	200

Why Choose Engineers Steel Straight Edges

Engineers steel straight edges are preferred for accurate inspection of long machine surfaces, reliable alignment verification, stable performance in industrial environments, and consistent measurement results over time. They are essential tools in tool rooms, machining units, and maintenance departments.

Industries We Serve

Automotive and auto component manufacturing
Engineering and fabrication units
Tool rooms and CNC machining facilities
Maintenance and inspection departments

Get a Quote

Contact us today for pricing, specifications, and bulk requirements for Engineers Steel Straight Edges. Our team will help you select the right size and specification based on your application.
