Box Angle Plates

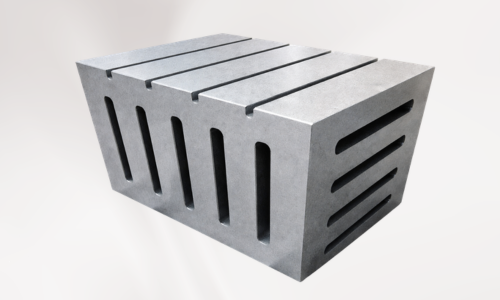

Box angle plates are heavy-duty precision support tools used to hold and align components at accurate right angles during inspection, machining, and layout operations. At Luthra Precision Instruments Pvt. Ltd., we manufacture box angle plates designed to provide enhanced rigidity, stability, and accurate angular alignment, making them ideal for large and heavy workpieces. These angle plates are widely used in tool rooms, fabrication units, and machining setups, where strong support and precision are required.

Box Angle Plates
Product Specifications
Parameter Details
Size 175 x 100 x 125 mm to 750 x 400 x 600 mm
Material Cast Iron
Color Silver
Surface Finish Hand Scrapped Finish
Brand Luthra
Key Features
  • Box-type construction for higher rigidity
  • Accurate right-angle geometry
  • Hand-scraped surface for precision contact
  • Suitable for heavy-duty applications
  • Stable support for large components
  • Durable cast iron construction
Applications
  • Holding heavy components at right angles
  • Machining and fabrication setups
  • Alignment and inspection tasks
  • Tool room and production use
Model Overview
Sizes (mm) Flatness of Working Faces (µm) Squareness of Working Faces (µm) Parallelism of Opposite Working Faces (µm)
175 x 100 x 125 5 13 15
250 x 150 x 175 8 15 18
350 x 200 x 250 8 18 20
450 x 300 x 350 10 18 20
600 x 400 x 450 10 20 23
750 x 400 x 600 14 25 30
Why Choose Box Angle Plates

Box angle plates are preferred when heavy components require stable support, high rigidity is needed during machining, accurate right-angle alignment is critical, and large workpieces are involved in inspection. They are widely used in heavy engineering, fabrication units, and machining workshops.

Industries We Serve
  • Automotive and auto component manufacturing
  • Engineering and fabrication units
  • Tool rooms and CNC machining facilities
  • Heavy engineering industries

Get a Quote

Contact us today for pricing, specifications, and bulk requirements for Box Angle Plates. Our team will help you select the right size and configuration based on your application.
